AMD Athlon™ 64 Desktop Prozessor


Der AMD Athlon 64 ist der Nachfolger des Athlon XP. Er basiert auf der K8-Generation und unterstützt erstmals AMD64 und ist damit der 64-Bit Zukunft gerüstet. Sein Einsatzgebiet liegt im dem Desktop-PC-Markt. Neu an der Architektur sind die AMD64-Befehle, das Hyper-Transport Protokoll, Cool & Quiet, SSE2 und NX-Bit zum Schutz des Computers. Der Athlon 64 hat nur einen Core und ist daher ein Single-Core Prozessor.
Die AMD64 Architektur lässt dem Prozessor Anwendungen ohne Abstriche in 32- und in 64-Bit auszuführen. D.h. diese CPU kann im 32 Bit-Modus nach der i386 Architektur wie ein herkömmlicher Athlon XP arbeiten, oder er kann im 64 Bit-Modus arbeiten, wobei ihm ein größerer Speicherbereich zu Verfügung steht und durch breitere Register eine schnellere Rechenoperation durchführt. Voraussetzung für die Unterstützung der AMD64 Befehle ist ein 64-Bit Betriebssystem.
Eine weitere Performance-Steigerung erreichte AMD bei dem Athlon64, indem sie den Speichercontroller direkt auf die CPU gesetzt haben. Das Resultat sind niedrige Latenzzeiten, die sich positiv auf die Leistung des Prozessors auswirken. AMD nannte die Verbindung zwischen Prozessor und Arbeitsspeicher Hyper-Transport.
Ebenso neu hinzugekommen ist die neue Stromspartechnologie unter dem Namen Cool & Quiet. Dies veranlasst, dass der Prozessor bei niedriger Auslastung auf ein niedriges Niveau heruntergetaktet wird, wobei die benötigte Spannung niedriger wird und ebenfalls runtergeregelt wird. Das veranlasst dem Prozessor, Strom zu sparen und eine geringere Wärmeentwicklung zu erzeugen. Logischer Weise kann dann auch der Kühl-Lüfter herunter geregelt werden, was natürlich sich positiv auf die Geräuschentwicklung auswirkt.


Technische Daten

Codename: Hammer , K9
Socket: Socket 754, Socket 939, Socket AM2
Multi-Core-CPU: Single-Core
CPU-Core Clawhammer C0, Clawhammer C0 512, Clawhammer CG, Clawhammer CG 512, Lima G1, Lima G2, Manchester E4, Newcastle CG, Newcastle CG 256, Orleans F2, San Diego E4, San Diego E4 512, Toledo E6, Venice E3, Venice E6, Winchester D0, Windsor F3
Protokoll: Hyper-Transport 1.0, Hyper-Transport 2.0
FSB-Takt: 200 MHz
Standard-Takt: 1000 - 2800 MHz
Turbo-Takt: -
L1-Cache Instr.: 1 x 64 kB
L1-Cache Daten: 1 x 64 kB
L2-Cache: 1 x 256 - 1024 kB
L3-Cache: -
Transistoren: 68 - 233 Mio.
Core-Fläche: 77 - 230 mm²
Fertigung: 65 - 130 nm
Leistungsaufnahme: 8 - 89 Watt
Speicherbandbreite: 64 Bit Single-Channel, 128 Bit Dual-Channel
Speichercontroller: DDR SD-RAM
PC 1600 - 3200 - PC2 3200 - 6400
Befehlssätze: MMX, 3D NOW!, SSE, SSE2, AMD64, Cool'n'Quiet, NX-Bit

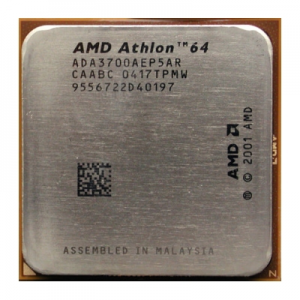

AMD Ahlon 64 Prozessor

AMD Ahlon 64 Prozessor

Athlon 64 Prozessor Socket 754

Athlon 64 Prozessor Socket 754

AMD Athlon™ 64 Desktop Prozessoren

APU-Modell: L2-Cache: L3-Cache: x86-Takt/Turbo: Technologie: TDP: Release: Info:
Athlon LE-1660 1 x 512 kByte 0 MByte 2800 / 0 MHz 65 nm 45 Watt Zoom-in Icon
Athlon LE-1640B 1 x 512 kByte 0 MByte 2700 / 0 MHz 65 nm 45 Watt k. A. Zoom-in Icon
Athlon LE-1640 1 x 1024 kByte 0 MByte 2600 / 0 MHz 90 nm 45 Watt 08.10.2007 Zoom-in Icon
Athlon LE-1640 1 x 512 kByte 0 MByte 2700 / 0 MHz 65 nm 45 Watt Zoom-in Icon
Athlon LE-1620 1 x 1024 kByte 0 MByte 2400 / 0 MHz 90 nm 45 Watt 08.10.2007 Zoom-in Icon
Athlon LE-1600 1 x 1024 kByte 0 MByte 2200 / 0 MHz 90 nm 45 Watt 08.10.2007 Zoom-in Icon
Athlon 64 4000+ 1 x 1024 kByte 0 MByte 2600 / 0 MHz 90 nm 62 Watt 20.02.2007 Zoom-in Icon
Athlon 64 4000+ 1 x 1024 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 4000+ 1 x 1024 kByte 0 MByte 2400 / 0 MHz 90 nm 89 Watt 04.04.2005 Zoom-in Icon
Athlon 64 4000+ 1 x 1024 kByte 0 MByte 2400 / 0 MHz 90 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 4000+ 1 x 512 kByte 0 MByte 2600 / 0 MHz 90 nm 89 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3800+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 65 nm 45 Watt 20.02.2007 Zoom-in Icon
Athlon 64 3800+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 90 nm 62 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3800+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 90 nm 62 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3800+ 1 x 1024 kByte 0 MByte 2400 / 0 MHz 90 nm 62 Watt 20.02.2007 Zoom-in Icon
Athlon 64 3800+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt 01.06.2004 Zoom-in Icon
Athlon 64 3800+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 90 nm 89 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3800+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 90 nm 89 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3700+ 1 x 1024 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3700+ 1 x 1024 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3700+ 1 x 1024 kByte 0 MByte 2200 / 0 MHz 90 nm 89 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3700+ 1 x 1024 kByte 0 MByte 2200 / 0 MHz 90 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3500+ EE 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 35 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 65 nm 45 Watt 20.02.2007 Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 62 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 62 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3500+ 1 x 1024 kByte 0 MByte 2200 / 0 MHz 90 nm 62 Watt 20.02.2007 Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 67 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 67 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 67 Watt 31.05.2005 Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 67 Watt 04.05.2005 Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3500+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt 01.06.2004 Zoom-in Icon
Athlon 64 3400+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 67 Watt 14.10.2004 Zoom-in Icon
Athlon 64 3400+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 90 nm 67 Watt k. A. Zoom-in Icon
Athlon 64 3400+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 67 Watt k. A. Zoom-in Icon
Athlon 64 3400+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 67 Watt k. A. Zoom-in Icon
Athlon 64 3400+ 1 x 1024 kByte 0 MByte 2200 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3400+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3400+ 1 x 1024 kByte 0 MByte 2200 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3400+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3400+ 1 x 512 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3400+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3300+ 1 x 256 kByte 0 MByte 2400 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 65 nm 45 Watt 2007 Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 90 nm 59 Watt k. A. Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 90 nm 62 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 90 nm 62 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 90 nm 67 Watt 14.10.2004 Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 90 nm 67 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 90 nm 67 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 90 nm 67 Watt 31.05.2005 Zoom-in Icon
Athlon 64 3200+ 1 x 1024 kByte 0 MByte 2000 / 0 MHz 130 nm 89 Watt 23.09.2003 Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3200+ 1 x 1024 kByte 0 MByte 2000 / 0 MHz 130 nm 89 Watt 23.09.2003 Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2200 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3200+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 90 nm 51 Watt k. A. Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 90 nm 51 Watt k. A. Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 90 nm 62 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 90 nm 62 Watt 23.05.2006 Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 90 nm 67 Watt 14.10.2004 Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 90 nm 67 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 90 nm 67 Watt 04.04.2005 Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 130 nm 89 Watt 15.12.2003 Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 130 nm 89 Watt 2004 Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 2000 / 0 MHz 130 nm 89 Watt 15.12.2003 Zoom-in Icon
Athlon 64 3000+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 130 nm 89 Watt k. A. Zoom-in Icon
Athlon 64 2800+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 130 nm 89 Watt 27.04.2004 Zoom-in Icon
Athlon 64 2800+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 130 nm 89 Watt 27.04.2004 Zoom-in Icon
Athlon 64 2800+ 1 x 512 kByte 0 MByte 1800 / 0 MHz 130 nm 89 Watt 27.04.2004 Zoom-in Icon
Athlon 64 2650e 1 x 512 kByte 0 MByte 1600 / 0 MHz 65 nm 15 Watt Zoom-in Icon
Athlon 64 2600+ 1 x 512 kByte 0 MByte 1600 / 0 MHz 65 nm 15 Watt k. A. Zoom-in Icon
Athlon 64 2000+ 1 x 512 kByte 0 MByte 1000 / 0 MHz 65 nm 8 Watt Zoom-in Icon
Athlon 64 1500+ 1 x 512 kByte 0 MByte 1000 / 0 MHz 90 nm 9 Watt 07.11.2005 Zoom-in Icon
